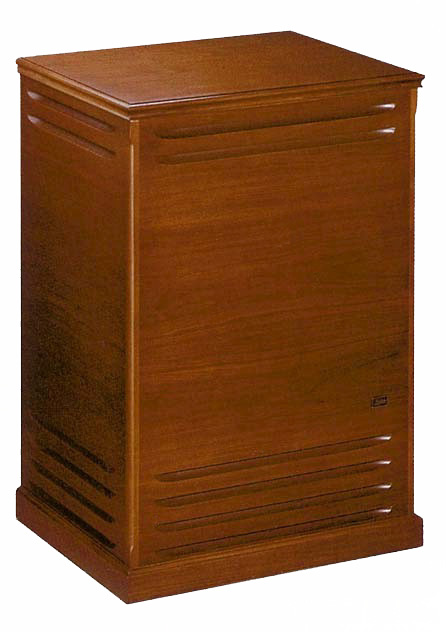

Leslie 771

MAIN FEATURES

This Leslie tone cabinet is designed for the musician who demands the full-spectrum sound. Single-channel inputs are separated into two separate amplifiers that control the high and low frequencies, with the highs reproduced by a horn rotor and the lows reproduced by a bass rotor. Both the horn and bass rotors can be operated in three different positions: Fast (Tremolo), Slow (Chorale) or Off. Each rotor system has its own amplification system and its own gain control. The rugged solid-state electronics provide long life, reliability and power for professional and institutional applications. The cabinet is the same as that of the 122A, 147A and 122XB.

The 11-pin connector is designed to interface directly with New Hammond XB-Series and later instruments or vintage units employing the 1188 connector kit.

Call Hammond Central Toll-Free at: 877.432.5700

SPECIFICATIONS Leslie 771
Bass	90W
Horn Rotor	60W
Total (solid-state, measured continuous undistorted output):	150W RMS
Dimensions	Inches : H 41 5/8 W 29 1/4 D 20 5/8 Cm : H 102 W 72 D 40
Weight	149 lb. / 70 Kg
